Introduction

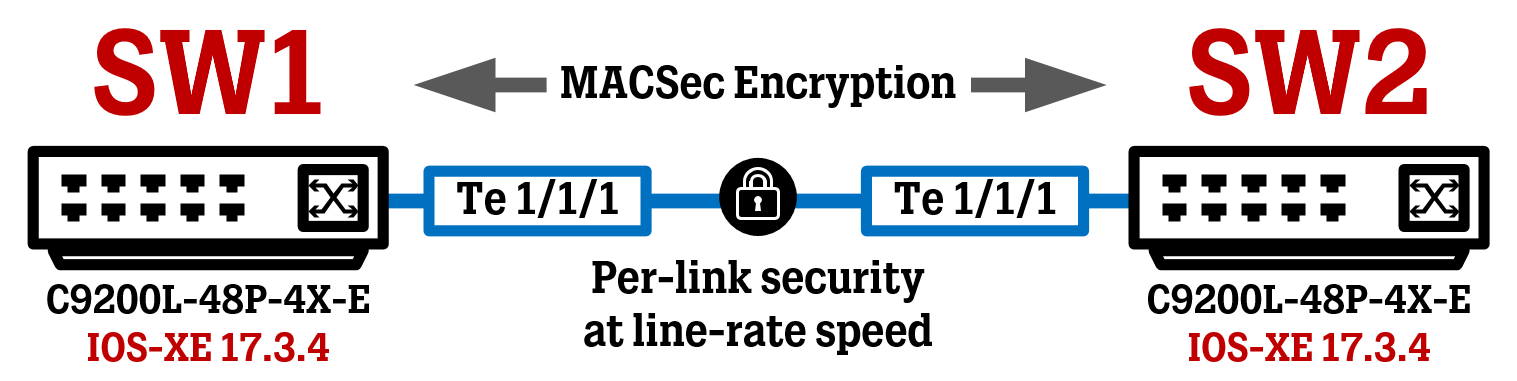

In this article, we are going to take a look at configuring per-link encryption using the MACSec technology on two Cisco IOS-XE switches using a Pre-Shared Key (“PSK”).
MACSec provides encryption at a layer 2 level, by having two directly connected devices (can be switches, routers, and even end-points) negotiate a secure link between each other before normal traffic can be passed.
About MACSec technology in general
While protocols such as TLS or IPSec are often used to encrypt traffic traveling between two different network “domains” (like site-to-site VPN tunnels), MACSec only works locally between two directly connected devices. While MACSec isn’t implemented to the same extent as IPSec today, MACSec has its place for those seeking to add an extra layer of protection on a network where they already have full control.
A lot of today’s traffic in networks is encrypted by default due to the protocols used by the applications (like HTTPS), MACSec is still relevant for traffic that is still unencrypted today or if you just want to add another layer of security for your data traffic.
In addition to offering the same security benefits as all other encryption does (data integrity/authenticity/confidentiality), MACSec also offers high scalability and encryption at line rate due to being run completely “in hardware”.
MACSec Authentication methods
To set up a secure link between two devices, some sort of authentication must take place between the participating devices to confirm the other side’s identity. In MACSec, there are three different methods to do this, detailed below.
Pre-Shared Key Authentication = the simplest implementation method, which we will go through in this article. A common Pre-Shared Key is used for authentication purposes.
Local Authentication (Certificates) = this method uses digital certificates installed on the devices to authenticate each other and essentially performs a standard 802.1x authentication (EAP-TLS) on the port running MACSec. Yep, this means running 802.1x authentication between two switches/routers.
Remote Authentication (Certificates) = works similar to Local Authentication, except that authentication is performed by an external RADIUS server (like Cisco ISE) and not by the network device itself. This method is useful if your devices are already connected to an Out-of-Band management network, where they can reach the needed RADIUS server since the device probably doesn’t have any other network connectivity if your whole network requires MACSec.
Configure Authentication
The following configuration has been tested on:
Cisco Catalyst C9200L-48P-4X-E running IOS-XE 17.3.4
For the two switches to authenticate each other before establishing a data link between the two, a Connectivity Key Name (“CKN”) and a Connectivity Association Key (“CAK”) must be configured on each side. These components together are used by the device assigned the Key Server role to create the Secure Association Key (“SAK”) using an algorithm. The SAK is then used to perform the actual encryption on the data plane, while the CKN only secures the control plane.
The SAK is renewed/updated every now and then, how often this happens can be configured in different ways (after X amount of packets/time).
The Connectivity Key Name (CKN) is simply the Key ID, which in my example below is set to “1234”. This parameter is sent in cleartext during the MACSec negotiation process, to indicate to both sides’ devices which key should be used on this particular link. The Key ID must be an even number of digits.
The Connectivity Association Key (“CAK”) is a Pre-Shared Key in the shape of a 32 or 64 hex digit long string, meaning you can use all numbers 0-9 and letters A-F in your key string.
A 64 hex digit long string is preferred, because it enables us to use the “cryptographic-algorithm aes-256-cmac” instead of the “cryptographic-algorithm aes-128-cmac” command, making the MACSec authentication process use stronger encryption since it uses the AES256 algorithm instead of AES128 algorithm , which is weaker.
How you come up with these numbers/letters is up to you, as long as the string is exactly 32 (for AES128 encryption) or 64 (for AES256 encryption) hex digits long.
Do note, that both the CKN and the CAK must match on both sides!
key chain MKA-KC macsec
key 1234
cryptographic-algorithm aes-256-cmac
key-string 1981723897182937ABCDEFA81461937812638123681768127311.......
lifetime local 00:00:00 Jan 1 1993 infinite
First, we configure these settings on SW1.
Now, we do the same configuration on SW2:
Configure Encryption Policy
Next up, we will configure a MACSec Key Agreement (“MKA”) policy, in which we will specify which encryption cipher suite to use to secure the traffic between the two switches.
Depending on your switch model and software running, different encryption cipher-suites may be available. In my case, the Cisco Catalyst 9200L model only has “gcm-aes-128” encryption available, while more high-end switches like the Catalyst 9300 have both “gcm-aes-128” and “gcm-aes-256” encryption available.
If you want to decide which switch will assume the Key Server role, you can use the “key-server priority <number>” command to influence this election. The lower the value, the higher the priority and the better the chance at becoming the Key Server. Setting the priority to “255” tells the switch to never be the Key Server.

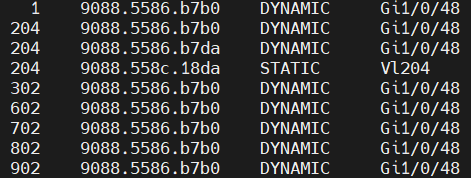

If two switches have the same priority, the switch with the lowest MAC address will assume the Key Server role.
From what I can tell, which switch who becomes the Key Server is not very important. It doesn’t really put any extra load on the switch itself, so I’d say it’s just fine to let the lowest MAC addresses process decide who is will assume the Key Server role.
The “sak-rekey interval” command defines how often the SAK (encryption key) should be renewed/updated. The switch assuming the Key Server role will decide the SAK rekey interval, so make sure you enter this command on both switches if you are letting the lowest MAC address process select which switch is the Key Server.
If you do not set a SAK rekey interval, the switch will do rekeying according to its model and IOS-XE version default behavior. Rekeying could be done either on a set default interval or based on packet count, meaning a new SAK key is generated after X number of packets have passed through the MACSec link. There is even a feature called Extended Packet Numbering (“XPN”) that is used on very high-end network equipment with very high bandwidth capacity (think 40G/100G or more), to allow for more packets to be sent before the SAK key is renewed. Without this feature, the high-end switch would be overwhelmed with having to renew the SAK key a massive amount of times every second. XPN is not covered in this article.
The SAK rekeying process did not impact live traffic.

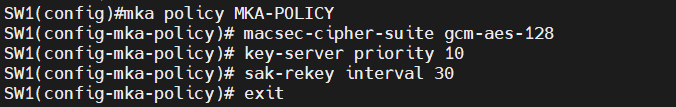

! SW1 Configuation (Key Server)
mka policy MKA-POLICY
macsec-cipher-suite gcm-aes-128
key-server priority 10
sak-rekey interval 30

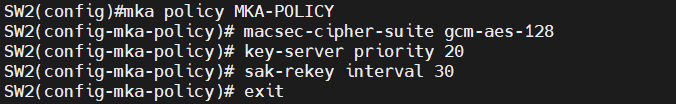

! SW2 Configuation (not Key Server)
mka policy MKA-POLICY
macsec-cipher-suite gcm-aes-128
key-server priority 20
sak-rekey interval 30
Activate MACSec on a physical Interface
The last step is to activate MACSec on the participating interfaces.
Be careful how you are implementing MACSec in an already active network, as the interface that you activate MACSec on first will go into a DOWN state until you activate MACSec on the switch on the other side of the link, after which it will go into the UP state (if you have configured everything correctly, that is)
Pay extra attention if you are implementing MACSec in an already active network!
interface Te1/1/1
switchport mode trunk
macsec network-link
mka policy MKA-POLICY
mka pre-shared-key key-chain MKA-KC

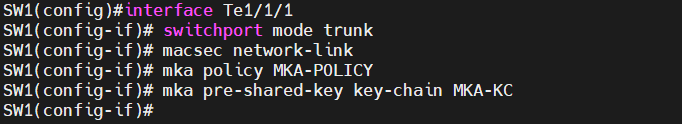

First, we configure these settings on SW1. This will bring down the link between SW1 and SW2.

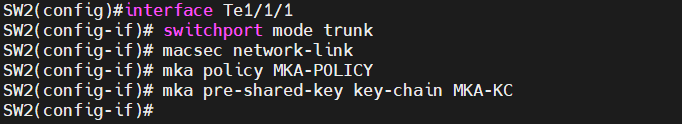

Now, we do the same configuration on SW2, which will bring UP the link between SW1 and SW2 as soon as the MACSec negotiation finishes:
After a few seconds, MACSec should be activated on the link between the two switches. In the console output of either switch, you should be seeing something like the image below a few seconds after finishing the configuration on both switches.
Verification
To verify that MACSec is running between the two switches, there are a few show commands that are useful to remember.

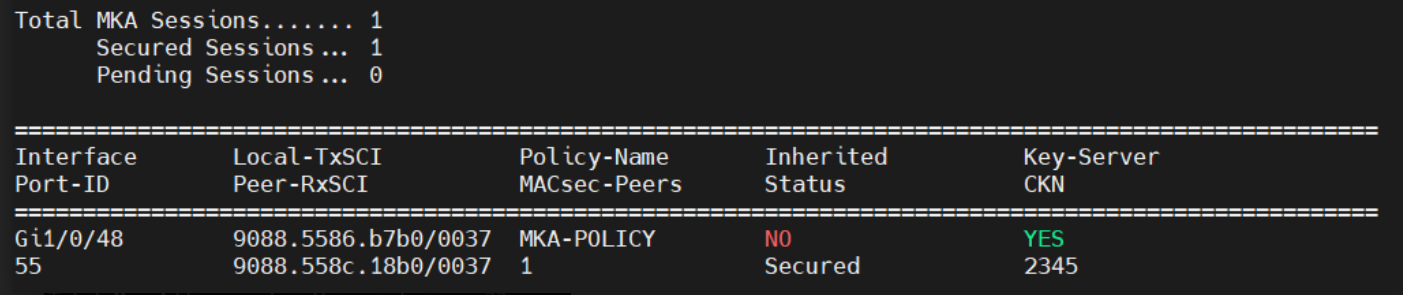

The command “show mka sessions” gives us a quick overview of current active MACSec links, who the peer device is, who has the Key Server role and which Key ID (CKN) is being used for this particular link.

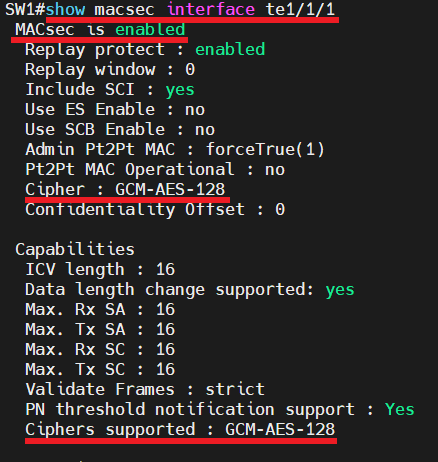

The command “show macsec interface <interface>” can be used to verify that MACSec is configured to run on an interface, and you can also see which encryption cipher is being used on this particular link (and also other supported encryption ciphers, if you switch supports more than one).
The command “show mka sessions interface <interface> detail” sort of combines the information from the previous show commands into a detailed view of the MKA policy and its parameters.
If you did set the SAK Rekey interval to something other than the default value, you should see the rekey process taking place by looking at the console output of either switch.

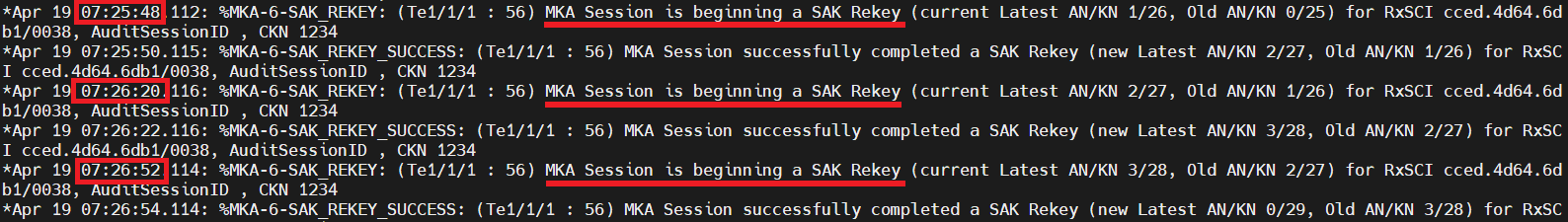

In the image below, you can see rekeying taking place about every 30 seconds, which is the interval we configured earlier.

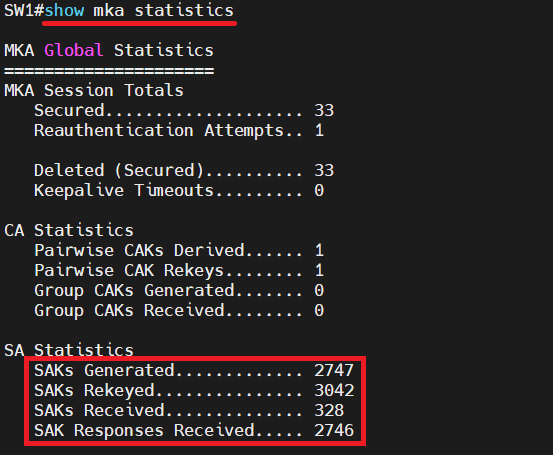

To see general statistics related to the MKA process, use the command “show mka statistics”. Here you can see, among other things, the number of times the SAK key has been rekeyed (renewed/updated).
